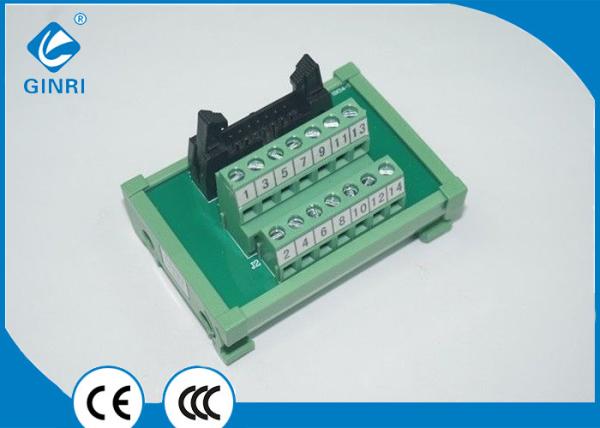

PLC Control Interface IDC Module DC24V Custom Phillips Screw , Slotted Screw
The classification of terminal blocks generally has two kinds: one is divided according to the way of wiring, and the other is divided according to his use; the large European terminal block is also divided into And without screws, etc., are mostly green, mostly used on PCB board; one is American-style fence terminal block, mostly black, with large current, mainly used in power supply, electrical control cabinet, There are many places where large electrical wiring is used; there is also a Japanese-style terminal block, which is mainly used in Japan because the price is expensive, and the terminals are also rather strange and use less. There is also a rail type terminal block
♦ Features
-- Support most of PLC output interface-- Standard DIN rain mounted
-- High quality connectors with excellent stability-- Models available with Phillips screw, slotted screw
-- Greatly savings in wiring and wiring Work-- Easy for inspection and maintenance
-- Compact slim 49mm width
♦ Typical Applications
• Micro-controller • PLC control • Servo System
• Electro-magnetic valve • DC Motors • CNC machine
• Home intelligent control
♦ Technical data
|
Model
|
JR-14TBC
|
|
Connector type
|
IDC(MIL)
|
|
I/O poles
|
14
|
|
Wiring method
|
Euro terminal (slotted screws)
*Japanese terminal (Phillips screws) can be customized
|
|
Rated current
|
1A
|
|
Rated voltage
|
DC24V
|
|
Insuration resistance
|
100MΩ min. (at 500VDC)
|
|
Dielectric strength
|
500VAC 1min
|
|
Ambient operating temperature
|
-20℃~+55℃
|
|
Applicable wires
|
AWG 22-16(0.3~1.25mm2),6~7mm
|
|
Suitable Uses
|
Panasonic FPΣ PLC
|
|
Dimensions(LxWxH)
|
68×49×46mm
|
|
Mounting
|
DIN rail
|
